Zoho Product Map Modules

The Webolytics Zoho Product Map module is a Site Builder Page Module that allows for pulling a Zoho Product specification directly onto your page from Zoho.

Before creating a Zoho Product Module, a new Zoho Connection will need to be set up against a vendor.

Creating a Zoho Product module

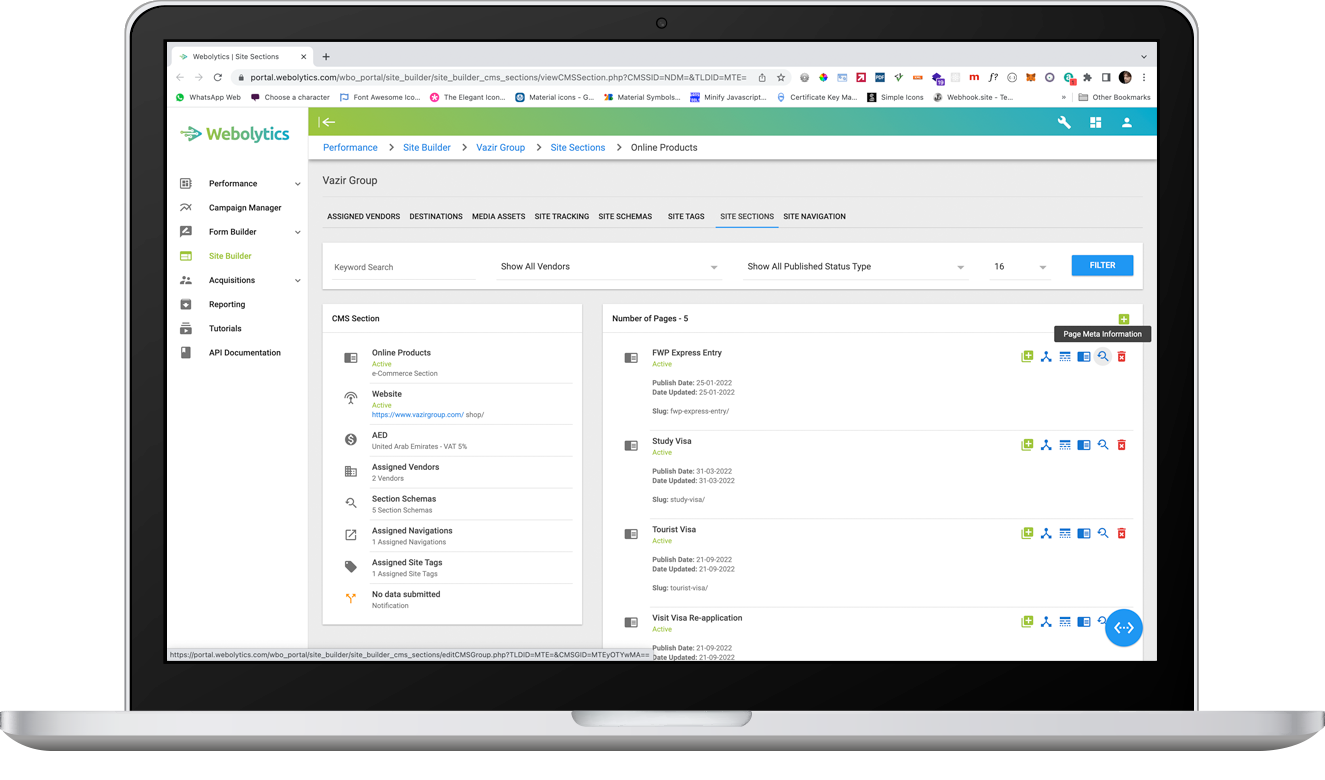

Log into webolytics, and go to the Site Builder > Site Sections and select the desired site to view. Once viewing the sections, select the desired Page Meta Information

zoho product map 1

On the Meta Information page, scroll to the bottom-left form modules block. Click the Green ‘+’ button in the CMS Group Modules Block, and select ‘Zoho Product Map’.

zoho product map 2

Once created, you will see you new Module in the list on the block. Click the green API icon next to the module to connect the form to zoho. On the modal window, select the Zoho Connection and click ‘Create’.

zoho product map 3

Once a Zoho Module has been created and connected, it will be ready to have the product values mapped to it.

Setting up the Zoho Product Module

Click the edit icon next to the Zoho module. This will launch a modal window which allows for control of the module.

zoho product map 4

To map form fields to the module, click the green ‘+’ icon. On the select option that appears, select the field that you want to be mapped from Zoho and then click the green tick icon.

zoho product map 5

Repeat the process above until all product fields that you want to be included are present.

zoho product map 4

The products information will now be mapped against this page from Zoho for display on the front end.

Important: If any product information is amended in Zoho, the this page will need to be amended with the new information.
